L06B Elf Illuminating tree light garden landscape lighting L06B-D

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L06B Elf Illuminating tree light garden landscape lighting L06B-D

The L06B Elf Illuminating tree light garden landscape lighting L06B-D combines ease of installation with a large number of outdoor light applications, including decorative landscaping and highlighting architectural elements. The L06B Elf is equipped with a user-friendly switch and adaptable connector that allows for an easy connection to most existing cables.Made of aluminum and non-toxic material, noiseless and safe to use Fashionable design for display in front yard, garden, party and shopping mall Perfect for outdoor night activities Decorative lighting for wedding, porch or yard illumination.

ADC12 low cuprum die-cast aluminum with anti-UV powder coating;

Multi-anti glare design, efficient control glare;

Built- -in heat sinker, provides smooth surface and slim appearance;

High strength horseshoe gear with supporter self- -locker offers stable body;

Hidden junction provides nice appearance and more safty;

IP66 and IK08 protection;

Osram or philips chip with high efficiency;
Optional accessories apply to park, garden, plaza, building facade etc

AU1

AU2

AU3

AU4

AU5

AU6

AU7

AU8

AU9

AU10

AU11

AU12

AU13

AU14

AU15

L06B-AΦ190

L06B-BΦ160

L06B-CΦ260

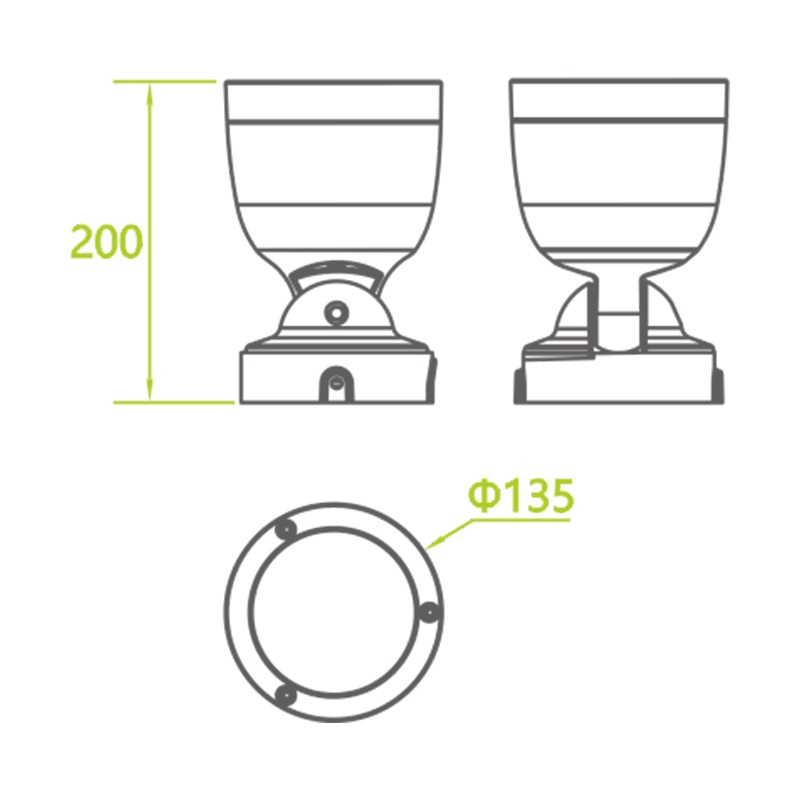

L06B-DΦ135

L06B-EΦ370*210

PRODUCT PARAMETER

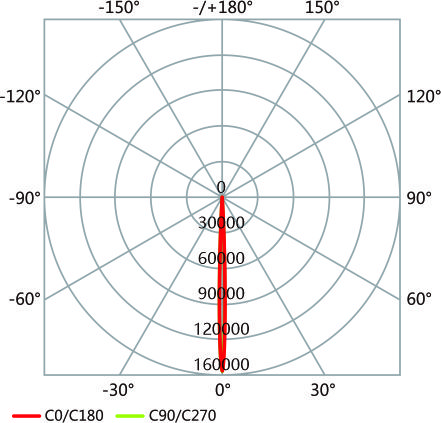

L06B-003D 9W 3°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	4549	6458	0.20
8	1136	1613	0.40
12	505	717	0.60
16	284	403	0.80
20	180	257	1.00

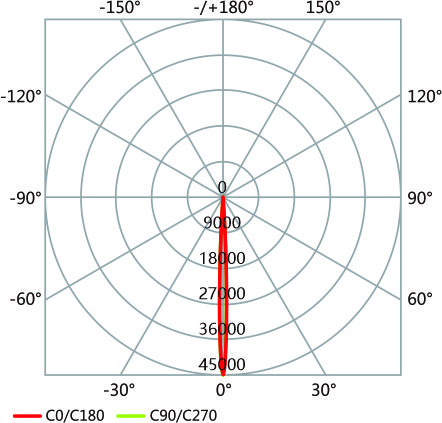

L06B-003D 9W 5°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	1907	2816	0.37
8	477	704	0.74
12	211	312	1.11
16	119	176	1.48
20	76	112	1.85

L06B-006D 20W 7°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	5802	8585	0.31
8	1437	2146	0.62
12	638	953	0.93
16	358	536	1.24
20	229	343	1.56

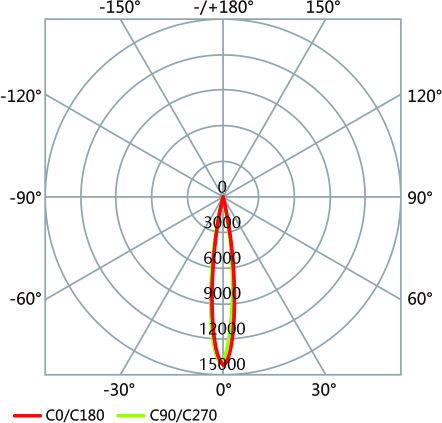

L06B-006D 20W 15°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	2394	3502	0.48
4	598	875	0.96
6	266	388	1.45
8	149	218	1.93
10	95	139	2.42

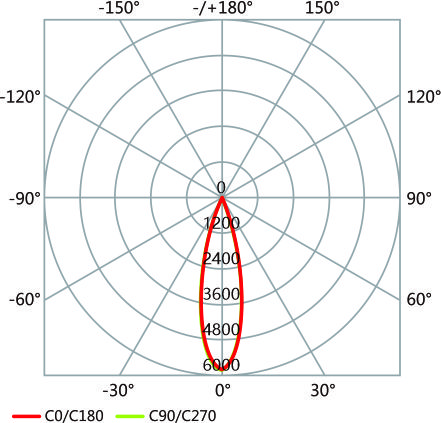

L06B-006D 20W 25°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	938	1412	0.95
4	234	353	1.9
6	103	156	2.85
8	58	88	3.8
10	37	55	4.75

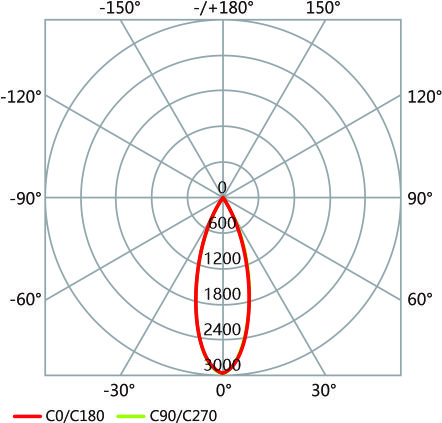

L06B-006D 20W 40°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	467	728	1.23
4	116	182	2.46
6	51	81	3.69
8	28	45	4.93
10	18	28	6.16

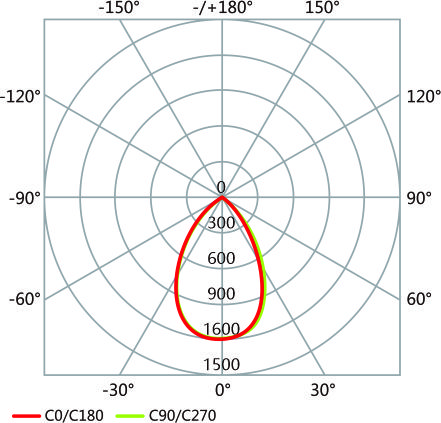

L06B-006D 20W 60°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	172	297	2.52
4	43	74	5.04
6	19	32	7.56
8	10	18	1.00
10	6	11	1.26

ACCESSORIES

L06B-003DP4.0L

Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
25 W	AC 220V	3 pcs	1246 lm	15°/25°/40°/60°	2.1 kg	Φ135x200mm	2.4kg/285x215x 175mm( 1 pcs/box)
							9.6kg/380x. 330x280mm(4pcs/box)

L06B-003DP2.2L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	8 W	AC 220V	3 pcs	927 lm	3°/5°	1.9 kg	Φ135x200mm	2.2kg/285x215x 175mm( 1 pcs/box)
				1137 lm	7°/15°/25°/40°/60°			8.4kg/380x. 330x280mm(4pcs/box)

L06B-006DP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	20W	AC 220V	6pcs	1900 lm	7°/15°/25°/40°/60°	2.0kg	Φ135x200mm	2.3kg/285x215x 175mm( 1 pcs/box)
								8.8kg/380x. 330x 280mm(4pcs/box)
