L06B Elf Illuminating tree light garden landscape lighting L06B-C

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L06B Elf Illuminating tree light garden landscape lighting L06B-C

The L06B Elf Illuminating tree light garden landscape lighting L06B-C is a unique garden light that adds sparkle to any outdoor space. This light is an excellent and quiet choice for adding a whimsical touch to your outdoor space, making it ideal for illuminating the front of your house or backyard. With an elegant design, the tree lights are capable of illuminating your garden with a fun-loving atmosphere. Perfect for both indoor and outdoor environments, each light can be easily positioned in any arrangement or grouping according to your needs——a perfect accent for your home and office.The powerful LED chips are solar-powered, so no wiring is necessary. Just install it in a sunny location to start charging the batteries. The lamp powers on automatically at dusk and switches off at sunrise.

ADC12 low cuprum die-cast aluminum with anti-UV powder coating;

Multi-anti glare design, efficient control glare;

Built- -in heat sinker, provides smooth surface and slim appearance;

High strength horseshoe gear with supporter self- -locker offers stable body;

Hidden junction provides nice appearance and more safty;

IP66 and IK08 protection;

Osram or philips chip with high efficiency;
Optional accessories apply to park, garden, plaza, building facade etc

AU1

AU2

AU3

AU4

AU5

AU6

AU7

AU8

AU9

AU10

AU11

AU12

AU13

AU14

AU15

L06B-AΦ190

L06B-BΦ160

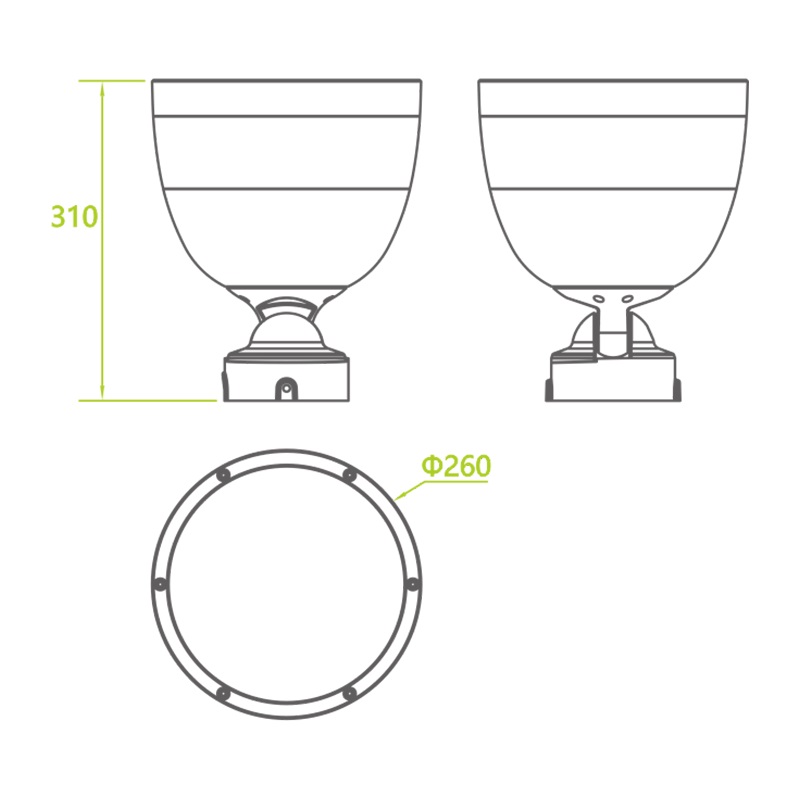

L06B-CΦ260

L06B-DΦ135

L06B-EΦ370*210

PRODUCT PARAMETER

LO6B-018C 60W 3°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	23671	33601	0.20
8	5917	8400	0.40
12	2614	3733	0.60
16	1479	2100	0.80
20	946	1344	1.00

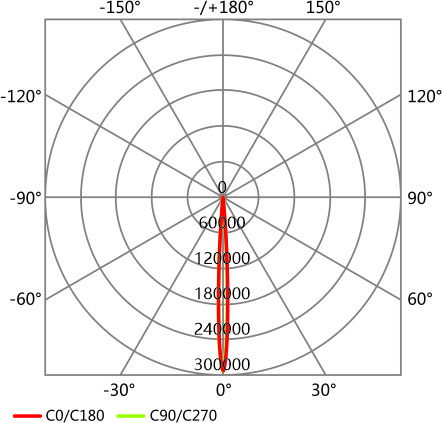

LO6B-018C 60W 5°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	12652	18685	0.37
8	3163	4671	0.74
12	1406	2076	1.11
16	790	1168	1.48
20	506	747	1.85

L06B-036C 120W 7°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	46880	70001	0.31
4	11720	17500	0.62
6	5209	7778	0.93
8	2930	4375	1.24
10	1875	2800	1.56

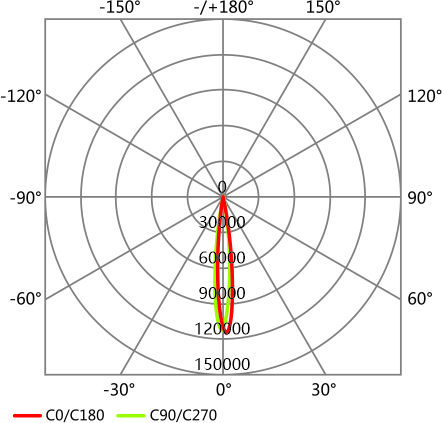

LO6B-036C 120W 15°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	19687	28790	0.48
4	4922	7197	0.96
6	2187	3199	1.45
8	1230	1799	1.93
10	787	1152	2.42

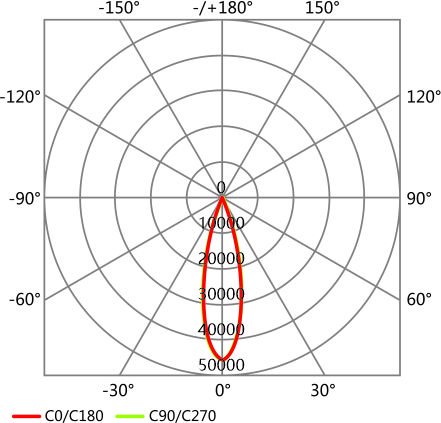

L06B-036C 120W 25°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	7642	11502	0.95
4	1911	2876	1.9
6	849	1278	2.85
8	577	718	3.8
10	305	460	4.75

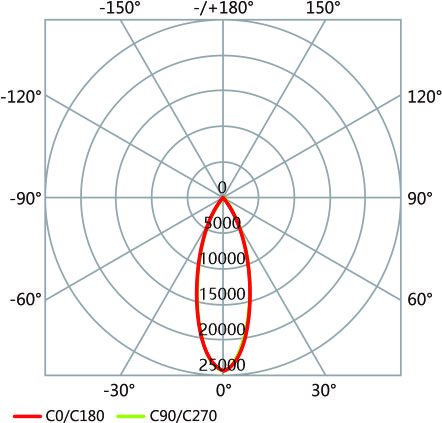

L06B-036C 120W 40°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	3872	6021	1.23
4	968	1505	2.46
6	430	669	3.69
8	242	376	4.93
10	154	240	6.16

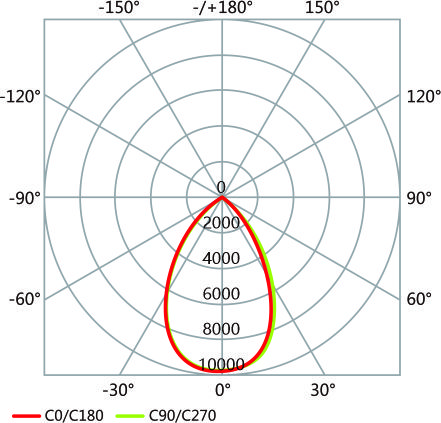

L06B-036C 120W 60°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	1412	2426	2.52
4	353	606	5.04
6	146	269	7.56
8	88	151	10.08
10	56	49	12.61

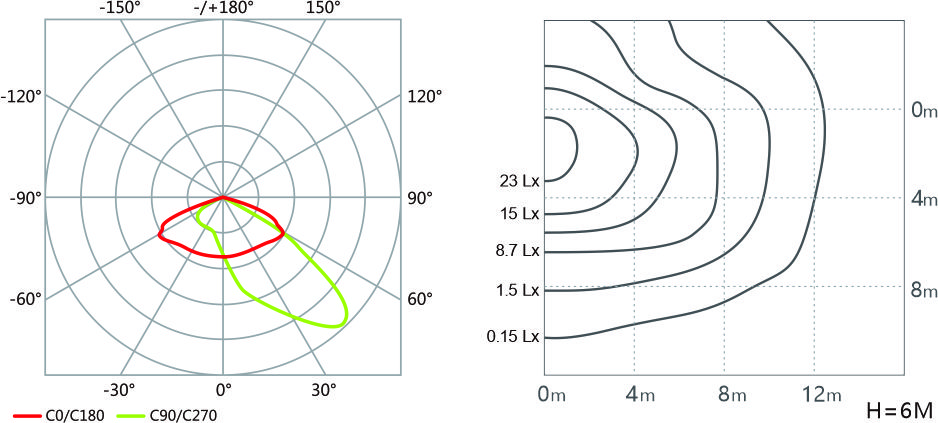

L06B-036C 120W 45*150°

ACCESSORIES

L06B-01 2CP4.0L

Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
120 W	AC 220V	12pcs	5758 lm	15°/25°/40°/60°	6.9 kg	Φ260x310mm	7.6kg/380x 330x280m(1 pcs/box)

L06B-018CP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	60 W	AC 220V	18 pcs	5036 lm	3°/5°	2.7 kg	Φ260x310mm	7.6kg/380x 330X 280mm(1 pcs/box)

L06B-024CP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	80W	AC 220V	24pcs	7992 lm	7°/15°/25°/40°/60°	6.8kg	Φ260x310mm	7.5kg/380x330x 280mm(1 pcs/box)

L06B-036CP2.6L/3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	100W	AC 220V	36 pcs	10847 lm	7°/15°/25°/40°/60°	6.9 kg	Φ260x310mm	7.6kg/380x 330x280mm( 1 pcs/box)
	120W			12396 lm
