L06B Elf Illuminating tree light garden landscape lighting L06B-E

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L06B Elf Illuminating tree light garden landscape lighting L06B-E

The L06B Elf Illuminating tree light garden landscape lighting L06B-E is an array of 5 RGB LEDs in a cluster with a built-in driver, providing great brightness and color. The Elf’s compact size enables it to fit many indoor places such as kitchen backsplashes, bars, dining tables and more.This LED garden light, designed with an exquisite flower shape, is specifically designed to brighten the pathway in residential areas, parks and gardens. It is made of aluminum alloy and ABS plastic materials, which are waterproof and heatproof with IP65 protection level. The super bright SMD LED bulbs will create a warm and romantic atmosphere for your garden path or lawn.

ADC12 low cuprum die-cast aluminum with anti-UV powder coating;

Multi-anti glare design, efficient control glare;

Built- -in heat sinker, provides smooth surface and slim appearance;

High strength horseshoe gear with supporter self- -locker offers stable body;

Hidden junction provides nice appearance and more safty;

IP66 and IK08 protection;

Osram or philips chip with high efficiency;
Optional accessories apply to park, garden, plaza, building facade etc

AU1

AU2

AU3

AU4

AU5

AU6

AU7

AU8

AU9

AU10

AU11

AU12

AU13

AU14

AU15

L06B-AΦ190

L06B-BΦ160

L06B-CΦ260

L06B-DΦ135

L06B-EΦ370*210

PRODUCT PARAMETER

L06B-036E 120W 3°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	24703	35066	0.20
8	6176	8767	0.40
12	2745	3896	0.60
16	1544	2192	0.80
20	988	1403	1.00

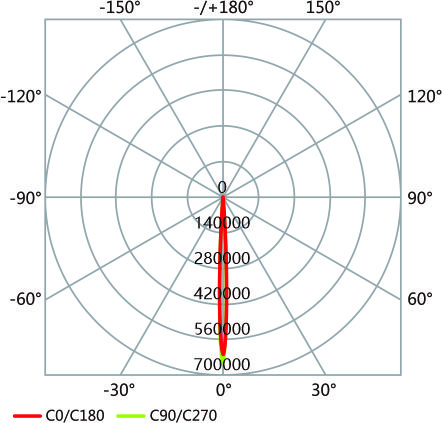

L06B-036E 120W 5°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	16677	24628	0.37
8	4169	6157	0.74
12	1853	2736	1.11
16	1042	1539	1.48
20	667	985	1.85

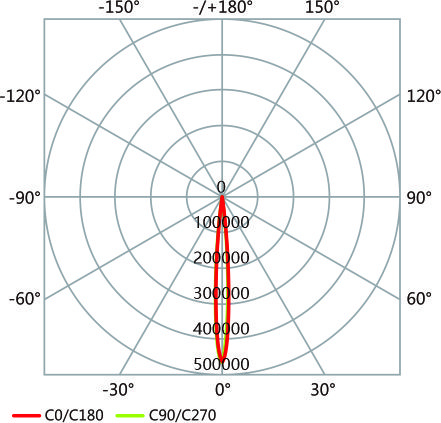

L06B-072E 200W 7°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	19531	29164	0.31
4	4883	7291	0.62
6	2170	3240	0.93
8	1221	1823	1.24
10	781	1167	3.12

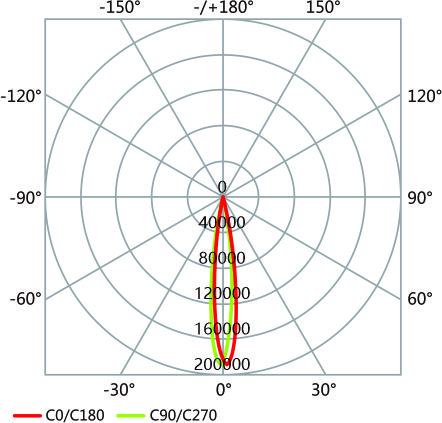

L06B-072E 200W 15°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	32800	47067	0.48
4	8200	11992	0.96
6	3644	5330	1.45
8	2050	2998	1.93
10	1312	1919	2.42

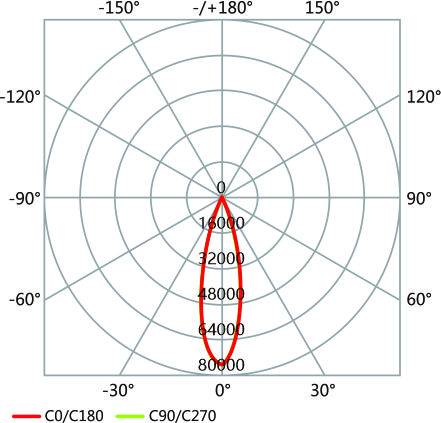

L06B-072E 200W 25°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	12736	19168	0.95
4	3184	4792	1.9
6	1415	2130	2.85
8	796	1198	3.8
10	509	766	4.75

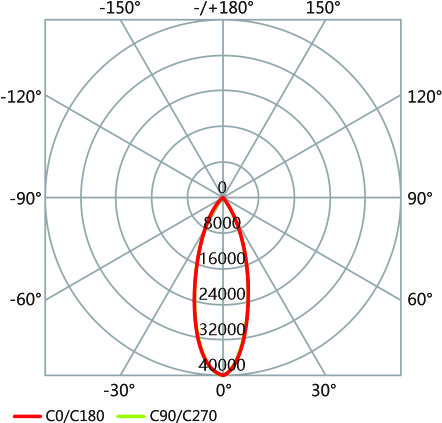

L06B-072E 200W 40°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	6403	9955	1.23
4	1601	2489	2.46
6	711	1106	3.69
8	400	622	4.93
10	266	398	6.16

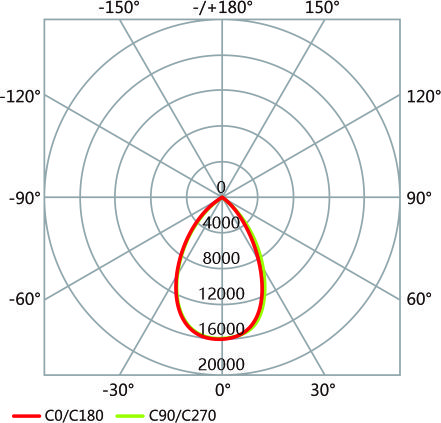

L06B-072E 200W 60°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	2354	4044	2.52
4	588	1011	5.04
6	261	449	7.56
8	147	252	10.08
10	94	161	12.61

ACCESSORIES

L06B-024EP4.0L

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size

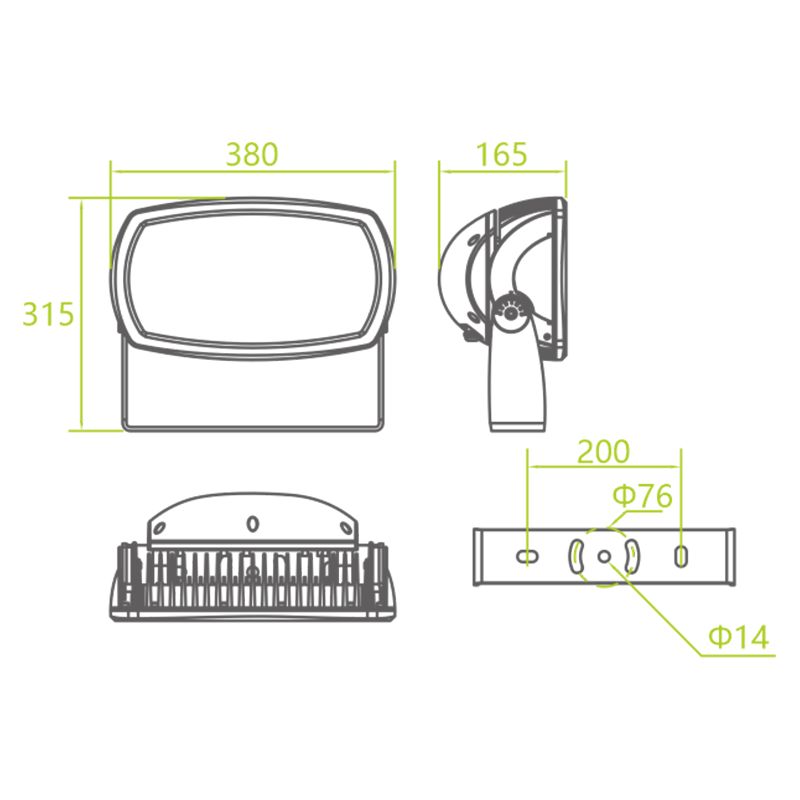

	200 W	AC 220V	24pcs	9869 lm	15°/25°/40°/60°	9.4 kg	380x315x165mm	10.6kg/440x285x225mm(1 pcs/box)

L06B-036EP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	120 W	AC 220V	36 pcs	10072 lm	3°/5°	9.0 kg	380x315x165mm	10.2kg/440x285X 225mm(1 pcs/box)

L06B-060EP2.2L/3.3L

3000/4000K/RGBW	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	150W	AC 220V	60pcs	16510 lm	7°/15°/25°/40°/60°	9.0kg	380x315x165mm	10.2kg/440x285X 225mm(1 pcs/box)
	180W			18821 lm

L06B-072EP3.3L

3000/4000K/RGBW	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	200W	AC 220V	72 pcs	19980 lm	7°/15°/25°/40°/60°	9.1 kg	380x315x165mm	10.3kg/440x 285x225mm( 1 pcs/box)

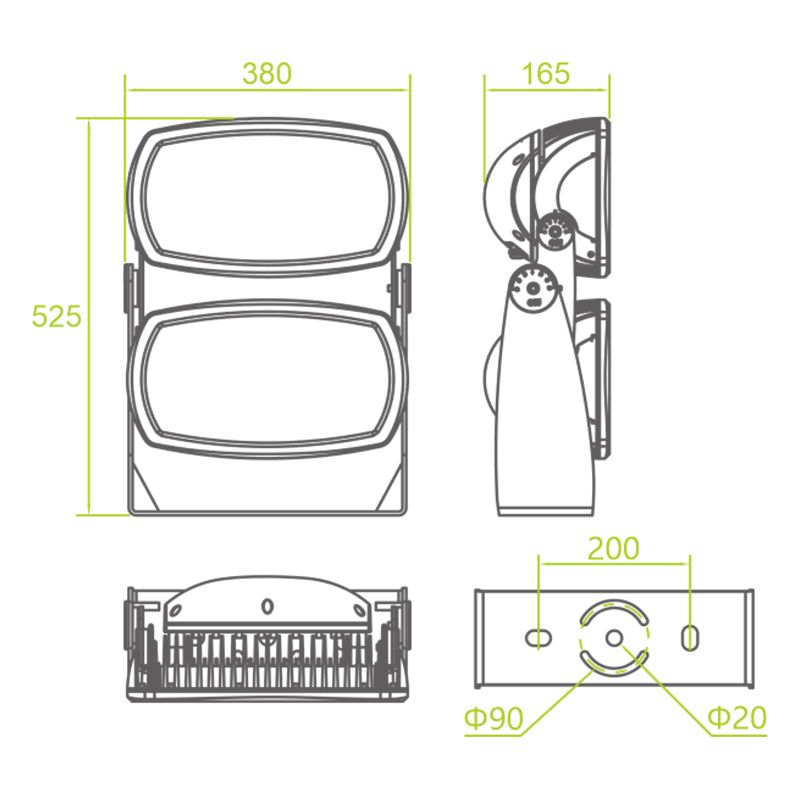

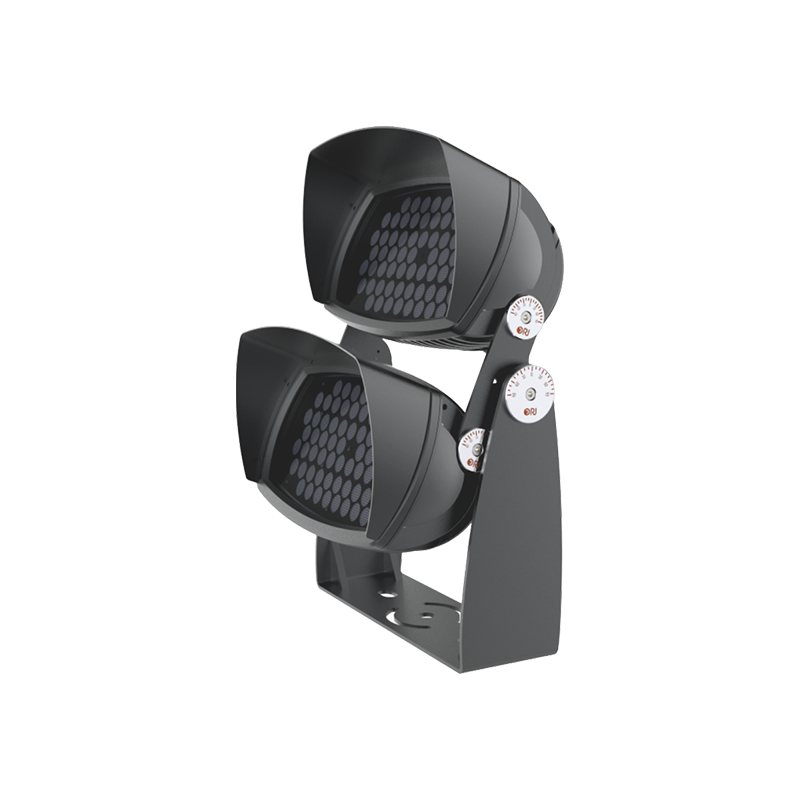

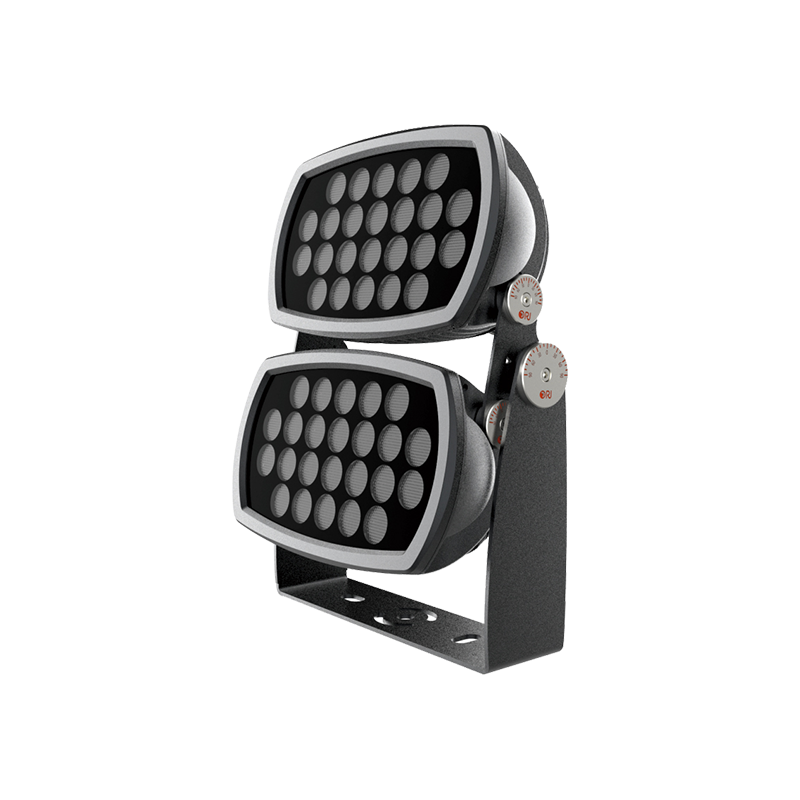

LO6B-144E Double

3000/4000K/RGBW	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGBW	400W	AC 220V	144 pcs	39960 lm	7°/15°/25°/40°/60°	20.2 kg	380x315x165mm	21.8kg/580x 440x250mm( 1 pcs/box)
