L06B Elf Illuminating tree light garden landscape lighting L06B-B

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L06B Elf Illuminating tree light garden landscape lighting L06B-B

The L06B Elf illuminating tree light is a beautiful and delicate illumination product, designed as an accent to illuminate trees and gardens. It has a simple structure and advanced heat dissipation, with high brightness, good color rendering index (CRI) and low power consumption, making it suitable for warm climate regions without power grid. The product is made of die-cast aluminum and anti-UV powder coating, meeting IP66 and IK08 requirements so that you can use it in many areas where there is strong wind or dust.The high strength horseshoe gear with supporter self-locker helps to offer a stable body and more safety. The hidden junction provides you with a nice appearance and makes it easier to install your light.

AU1

AU2

AU3

AU4

AU5

AU6

AU7

AU8

AU9

AU10

AU11

AU12

AU13

AU14

AU15

L06B-AΦ190

L06B-BΦ160

L06B-CΦ260

L06B-DΦ135

L06B-EΦ370*210

PRODUCT PARAMETER

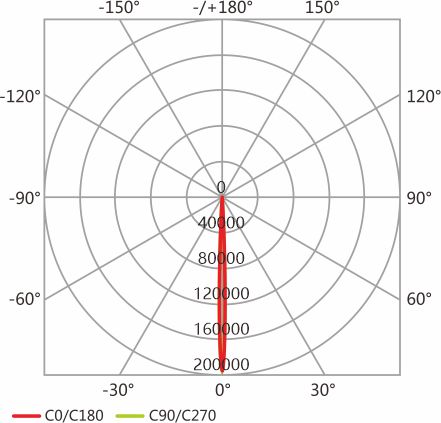

LO6B-006B 20W 3°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	8647	12275	0.20
8	2160	3068	0.40
12	959	1362	0.60
16	539	765	0.80
20	345	765	1.00

LO6B-006B 20W 5°

h[m]	Eavg[lx]	Emax[x]	D[m]
4	4378	36464	0.37
8	1093	1617	0.74
12	486	717	1.11
16	273	402	1.48
20	185	255	1.85

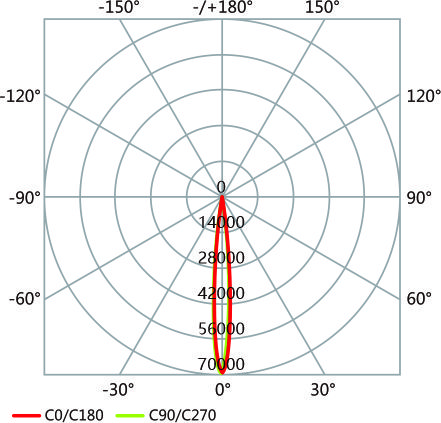

LO6B-009B 30W 7°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	11724	17506	0.31
4	2931	4377	0.62
6	1303	1945	0.93
8	732	1094	1.24
10	469	700	1.56

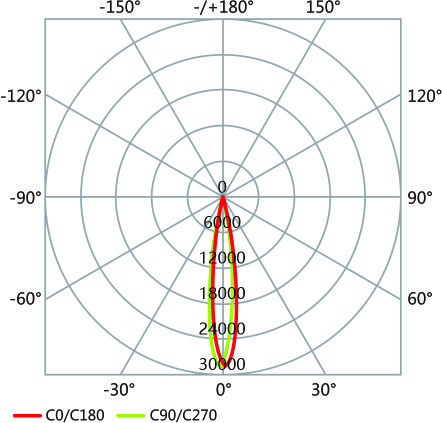

L06B-009B 30W 15°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	4923	7199	0.48
4	1231	1800	0.96
6	547	799	1.45
8	307	449	1.93
10	196	287	2.42

LO6B-009B 30W 25°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	1912	2878	0.95
4	478	719	1.9
6	212	319	2.85
8	119	179	3.8
10	76	115	4.75

LO6B-009B 30W 40°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	959	1492	1.23
4	239	373	2.46
6	106	165	3.69
8	59	93	4.93
10	38	59	6.16

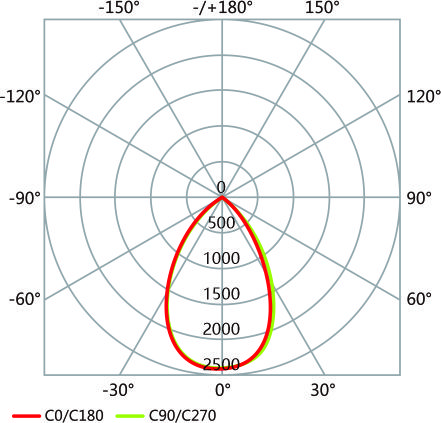

LO6B-009B 30W 60°

h[m]	Eavg[lx]	Emax[x]	D[m]
2	353	607	2.52
4	88	151	5.04
6	39	67	7.56
8	22	37	1.00
10	14	24	12.61

ACCESSORIES

L06B-004BP4.0L

Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
40 W	AC 220V	4pcs	1798 lm	15°/25°/40°/60°	2.9 kg	Φ160x245mm	3.1kg/320x210x230mm( 1 pcs/box)
							12.5kg/380x 380x 330mm(4pcs/box)

L06B-006BP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	20 W	AC 220V	6 pcs	1743 lm	3°/5°	2.7 kg	Φ160x245mm	2.9kg/320x210x230mm(1pcs/box)
				2099 lm	7°/15°/25°/40°/60°			12.5kg/380x 380x330mm(4pcs/box)

L06B-009BP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	30W	AC 220V	9pcs	3100 lm	7°/15°/25°/40°/60°	2.8kg	Φ160x245mm	3.0kg/320x210<230mm( 1pcs/box)
								12.1kg/380X 380x330mm(4pcs/box)

L06B-012BP3.3L

3000/4000K	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
	40W	AC 220V	12 pcs	3986 lm	7°/15°/25°/40°/60°	2.9kg	Φ160x245mm	3.1kg/320x210x230mm(1pcs/box)
								12.5kg/380x 380x330mm(4pcs/box)
