PRODUCT PARAMETER

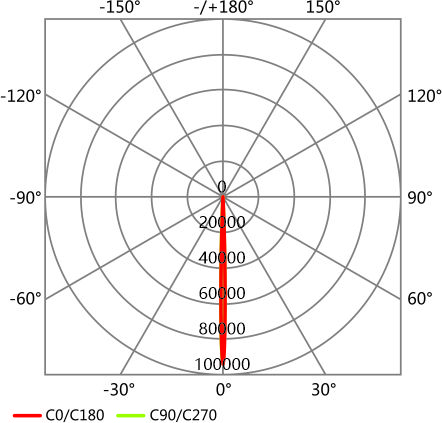

L07B-012BP3.3L 12Wx3PCS 2.5°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
4 |
3981 |
6303 |
0.17 |
|
8 |
993 |
1575 |
0.34 |
|
12 |
441 |
699 | 0.50 | |
16 |
246 |
393 | 0.67 | |
20 |
159 |
252 | 0.84 |
LO7B-012BP3.3L 12Wx3PCS 5°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
2 | 15552 | 23166 | 0.18 | |
4 | 3888 | 5793 | 0.36 | |
6 | 1728 | 2574 | 0.54 | |
8 | 1296 | 1446 | 0.73 | |
10 | 621 | 924 | 0.91 |

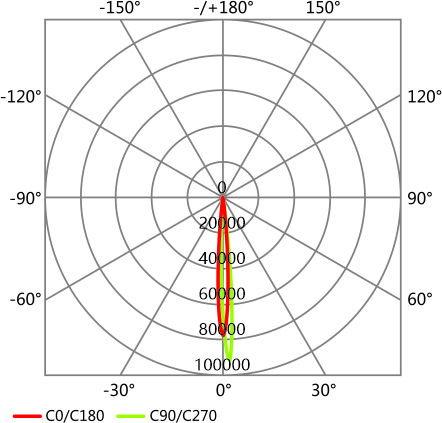

L07B-012BP3.3L 12Wx3PCS 7°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
2 | 10560 | 25299 | 0.21 | |
4 | 2640 | 6324 | 0.42 | |
6 | 1173 | 2811 | 0.64 | |
8 | 660 | 1581 | 0.85 | |
10 | 420 | 1011 | 1.06 |

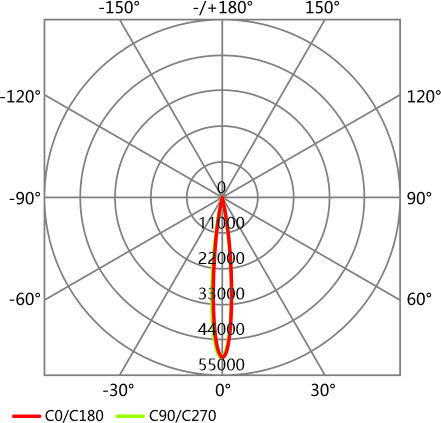

L07B-003 BP20L 20Wx3PCS 10°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 38250 | 55718 | 0.19 | |
2 | 9564 | 13428 | 0.39 | |
3 | 4251 | 5970 | 0.59 | |
4 | 2388 | 3357 | 0.78 | |
5 | 1530 | 2148 | 0.98 |

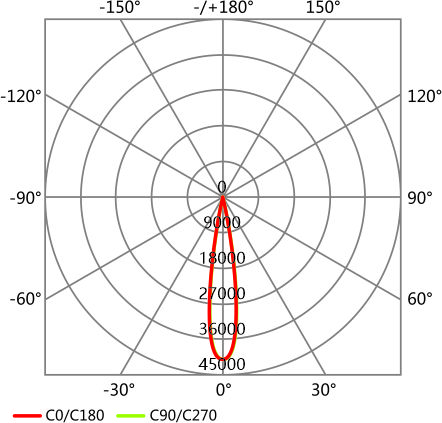

L07B-003AP20L 20Wx3PCS 15°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 30255 | 41598 | 0.95 | |
2 | 7563 | 10401 | 0.57 | |
3 | 3363 | 4623 | 0.86 | |
4 | 1890 | 2598 | 1.14 | |
5 | 1209 | 1662 | 1.43 |
L07B-003BP20L 20Wx3PCS 25°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 16131 | 22713 | 0.45 | |
2 | 4032 | 5679 | 0.91 | |
3 | 1791 | 2523 | 1.36 | |
4 | 1008 | 1419 | 1.82 | |
5 | 645 | 906 | 2.27 |

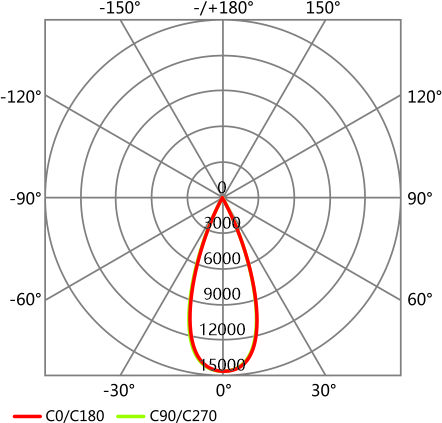

L07B-003BP20L 20Wx3PCS 40°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 8334 | 11901 | 0.69 | |
2 | 2082 | 2973 | 1.39 | |
3 | 924 | 1320 | 2.08 | |
4 | 519 | 744 | 2.78 | |
5 | 333 | 474 | 3.47 |

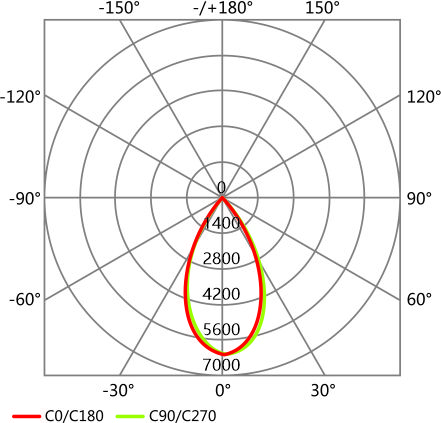

L07B-003BP20L 20Wx3PCS 50°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 |
4452 | 7014 |
0.94 |
|
2 |
1107 | 1752 |
1.89 |
|
3 |
492 | 777 |
2.83 |
|
4 |
276 | 438 |
3.78 |
|
5 |
177 | 279 |
4.72 |

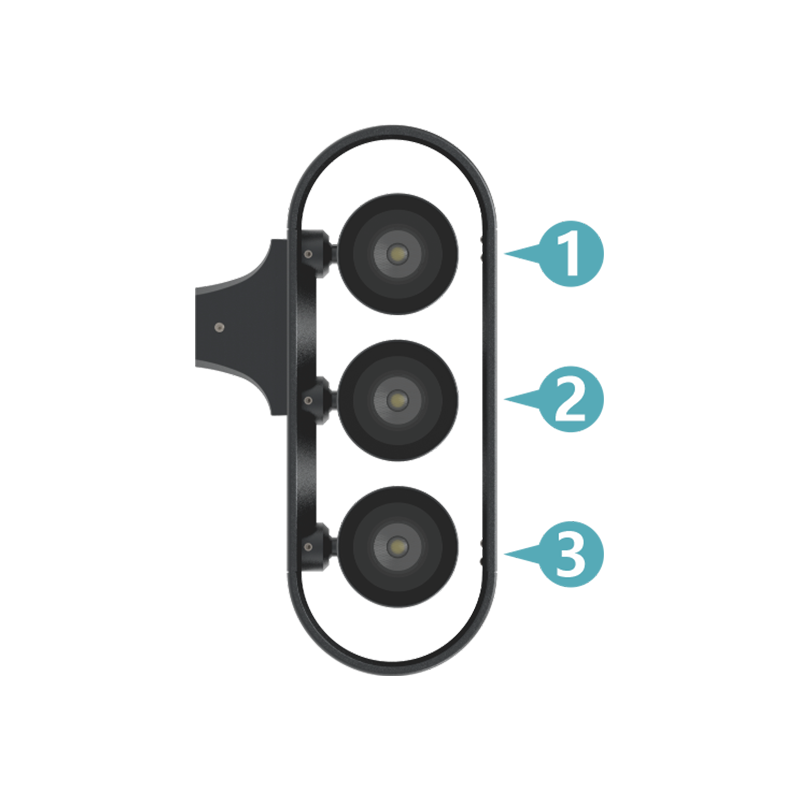

ACCESSORIES
L07B-003BP20L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |

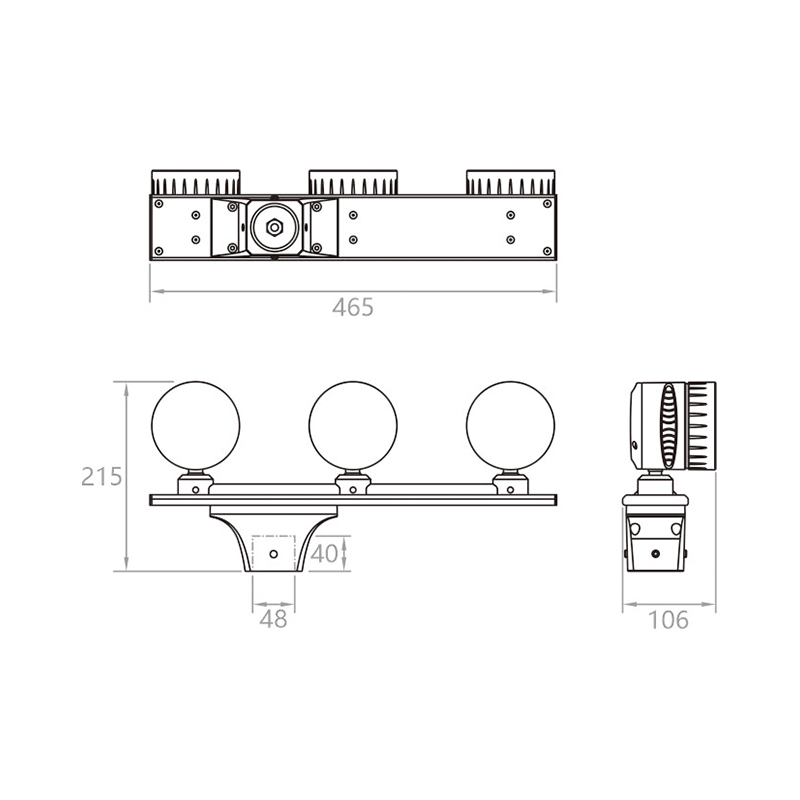

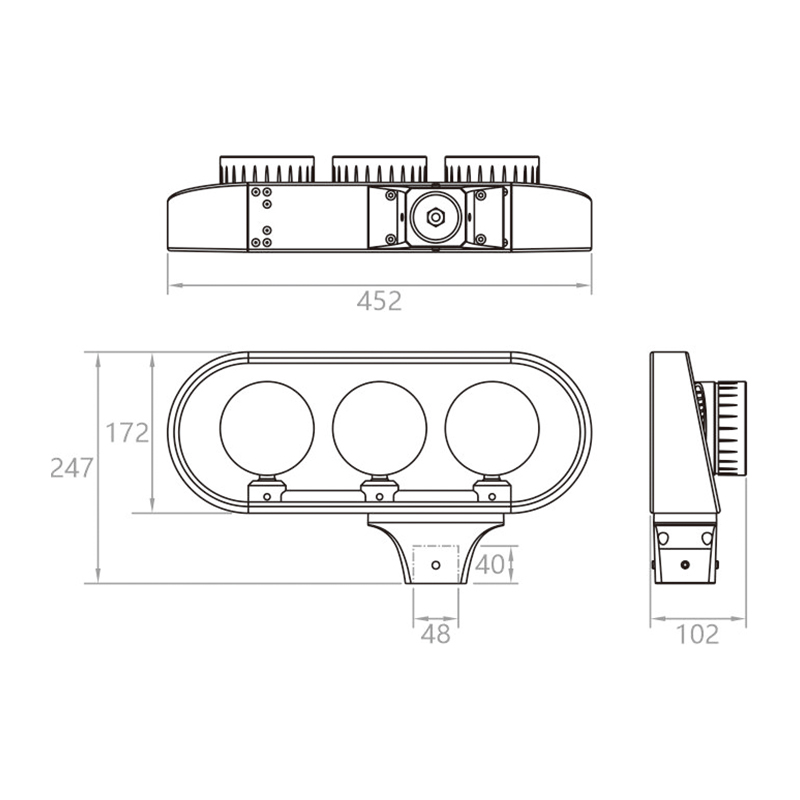

Lamp Size |
Gross Weight/Packing Size |
3000/4000/5000K |
20wx3pcs |
DC 24V |
3 pcs |
3410 lm |
10°/15°/25°/40°/50° |
4.5 kg |
Φ452*247x102mm |
5.8kg/506x 303x160mm(1pcs/box) |
L07B-012B3.3L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
3000/4000/5000K |
12wx3pcs |
DC 24V |
12 pcs |
2484Im |
2.5°/5°/7° |
4.5 kg |
Φ452*247x102mm |
5.8kg/506x 303x160mm(1pcs/box) |
L07B-001B4.0L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
RGBW |
12wx3pcs |
DC 24V |
3 pcs |
1512 Im |
15°/25°/40°/60° |
4.5 kg |
Φ452*247x102mm |
5.8kg/506x 303x160mm(1pcs/box) |
