PRODUCT PARAMETER

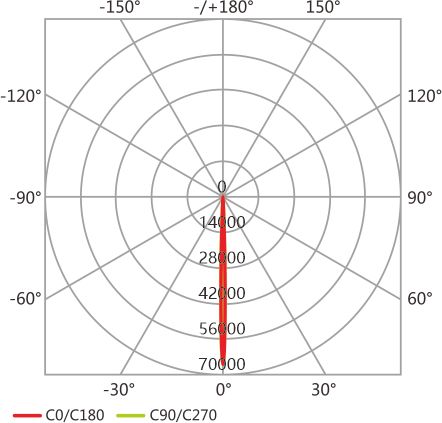

L07B-008BP3.3L 12Wx2PCS 2.5°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
4 |
2654 |
4202 |
0.17 |
|
8 |
662 |
1050 |
0.34 |
|
12 |
294 |
466 | 0.50 | |
16 |
164 |
262 | 0.67 | |
20 |
106 |
168 | 0.84 |

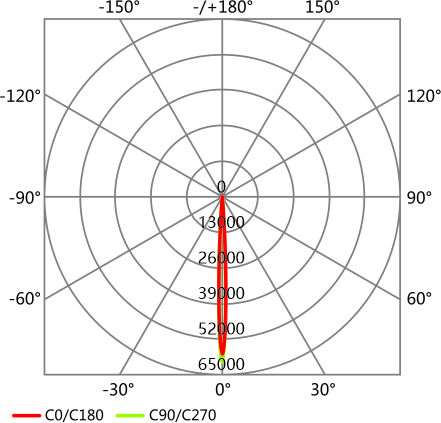

LO7B-008BP3.3L 1 2Wx2PCS 5°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
2 | 10368 | 15444 | 0.18 | |
4 | 2592 | 3862 | 0.36 | |
6 | 1152 | 1716 | 0.54 | |
8 | 648 | 964 | 0.73 | |
10 | 414 | 616 | 0.91 |

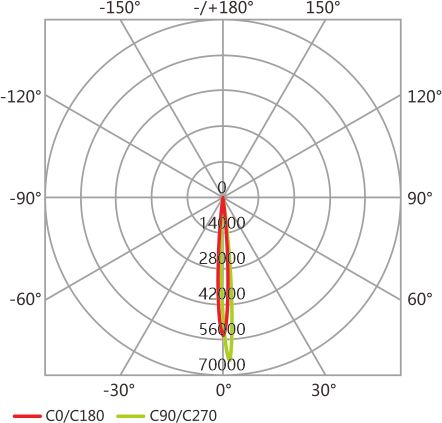

L07B-008BP3.3L 12Wx2PCS 7°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
2 | 7040 | 16866 | 0.21 | |
4 | 1760 | 4216 | 0.42 | |
6 | 782 | 1874 | 0.64 | |
8 | 440 | 1054 | 0.85 | |
10 | 280 | 674 | 1.06 |
L07B-002BP20L 20Wx2PCS 10°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 25500 | 35812 | 0.19 | |
2 | 6376 | 8952 | 0.39 | |
3 | 2834 | 3980 | 0.59 | |
4 | 1592 | 2238 | 0.78 | |
5 | 1020 | 1432 | 0.98 |

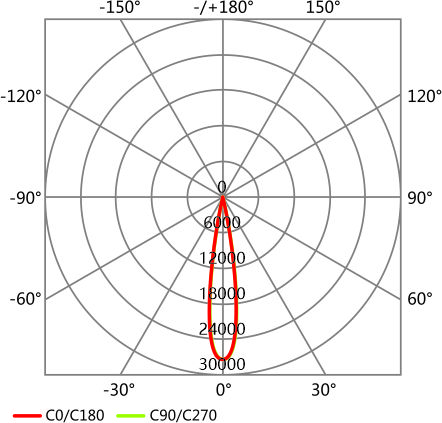

L07B-002BP20L 20Wx4PCS 15°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 20170 | 27732 | 0.95 | |
2 | 5042 | 6934 | 0.57 | |
3 | 2242 | 3082 | 0.86 | |
4 | 1260 | 1732 | 1.14 | |
5 | 806 | 1108 | 1.43 |

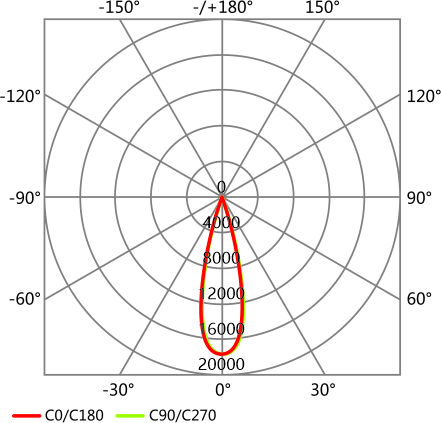

L07B-002BP20L 20Wx2PCS 25°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 10754 | 15142 | 0.45 | |
2 | 2688 | 3786 | 0.91 | |
3 | 1194 | 1682 | 1.36 | |
4 | 672 | 946 | 1.82 | |
5 | 430 | 604 | 2.27 |

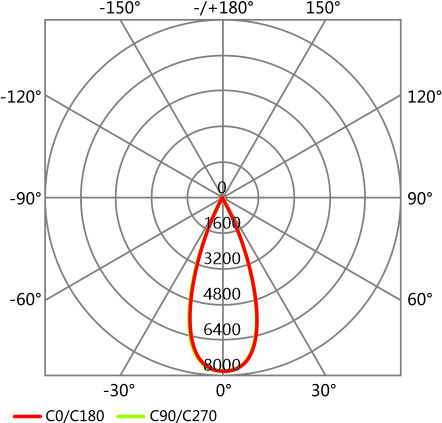

L07B-002BP20L 20Wx2PCS 40°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 | 5556 | 7934 | 0.69 | |
2 | 1388 | 1982 | 1.39 | |
3 | 616 | 880 | 2.08 | |
4 | 346 | 496 | 2.78 | |
5 | 222 | 316 | 3.47 |

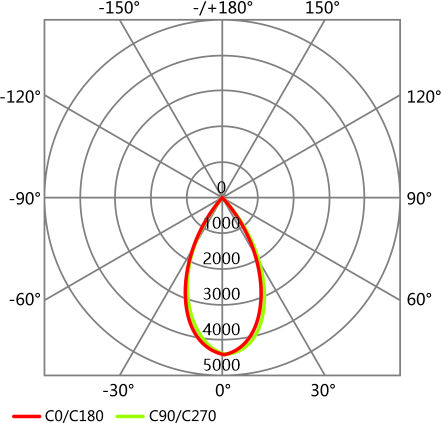

L07B-002BP20L 20Wx2PCS 50°
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
|
1 |
2968 | 4676 |
0.94 |
|
2 |
738 | 1168 |
1.89 |
|
3 |
328 | 518 |
2.83 |
|
4 |
184 | 292 |
3.78 |
|
5 |
118 | 186 |
4.72 |
ACCESSORIES
L07B-002BP20L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
3000/4000/5000K |
20wx2pcs |
DC 24V |
2 pcs |
3410 lm |
10°/15°/25°/40°/50° |
3.3kg |

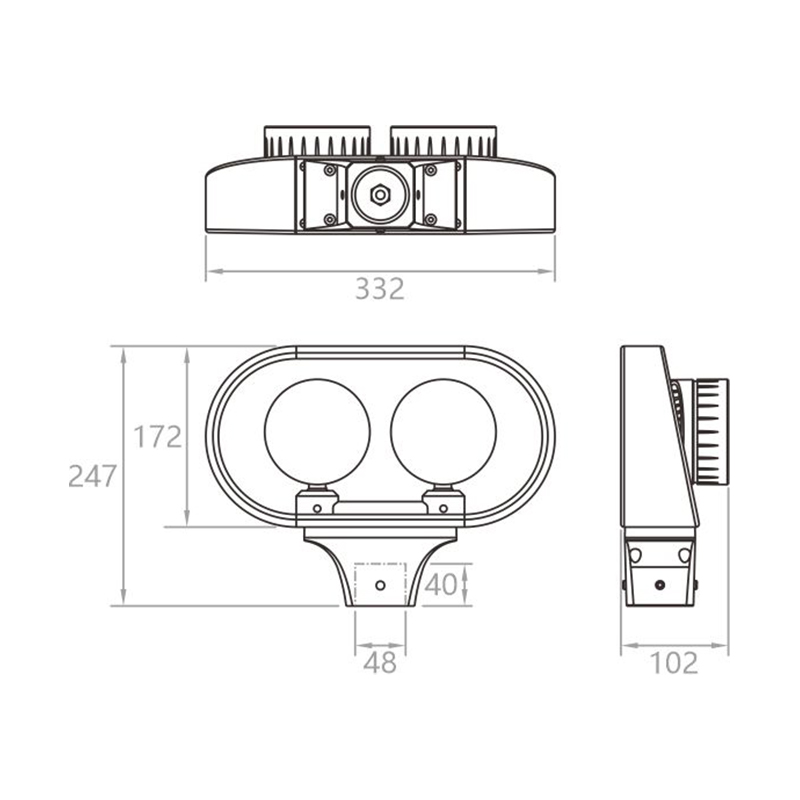

Φ332*247x102mm |
4.0kg/386x 303x 160mm(1pcs/box) |
L07B-004B3.3L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
3000/4000/5000K |
12W |
DC 24V |
8pcs |
1656 Im |
2.5°/5°/7° |
3.3kg |
Φ332*247x102mm |
2.5kg/230*140*207mm(1pcs/box) |
L07B-001B4.0L
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
RGBW |
12W |
DC 24V |
2 pcs |
1008 Im |
15°/25°/40°/60° |
3.3kg |
Φ332*247x102mm |
2.5kg/230x 140x207mm(1pcs/box) 5.0kg/230x280x207mm(2pcs/box) |
