L01F wall washer architectural lighting L01F weil sharp light fixture

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L01F wall washer architectural lighting L01F weil sharp light fixture

The L01F wall washer architectural lighting L01F weil sharp light fixture is a new generation of LED luminaries which is the perfect solution for space-limited areas, providing excellent light quality with a variety of available color temperatures and beam angles up to 60°. Both the appearance and function of these fixtures make them an essential component for many interior architectural lighting projects. With features such as high power density, equivalent lumens, low heat generation, long lifespan and low maintenance costs, L01F wall washers never compromise on performance or design.A high-quality wall washer with a stylish and elegant design, that's perfect for commercial application. With an excellent light output, long life span, and unique appearance the L01F is an ideal fixture for both retail spaces and hospitality areas.

●Reinforced aluminum alloy lamp body, die cast aluminum end cover; smooth surface self-cleaning, beautiful appearance, solid structure;

●High pressure integrated, simple appearance, beautiful and perfect fusion of architecture. Integral heat dissipation structure, which can transfer heat toExternal cooling;

●Plug type waterproof structure, waterproof lasting effective, up to IP66. Isolated wire feeding structure, which can effectively prevent the cable from water vapor;

●Signal terminal anti surge lightning ESD anti reverse circuit protection design, up to 4KV.

PRODUCT PARAMETER

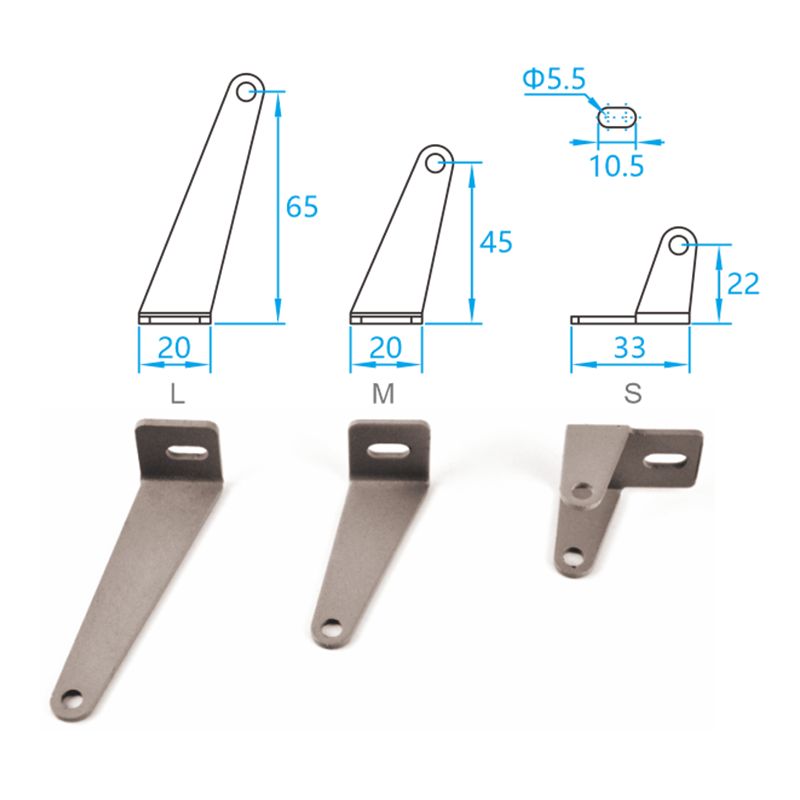

ACCESSORIES

L01 F-009

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Silze	Gross Weight/Packing Size
3000/4000K/RGB	11W	AC 220V	9pcs	016	7/25/40/60%	1.9kg	500x55x66mm	2.2kg/565x135x175mm(lpcs/box)
3000/4000K/RGB	21W	AC 220V	9pcs	1655lm	15x30°/15x55°	1.9kg	500x55x66mm	2.2kg/565x135x175mm(lpcs/box)

L01F-012

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	14W	AC 220V	12 pcs	12051m	7°/25/40%60%	1.9kg	500x55x66mm	2.2kg/565x135x175mm(lpcs/box)
3000/4000K/RGB	28W	AC 220V	12 pcs	21831m	15x30°/15x55°	1.9kg	500x55x66mm	2.2kg/565x135x175mm(lpcs/box)

L01F-018

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weightt/Packing Size
3000/4000K/RGB	21W	AC 220V	18 pcs	18021m	7°/25/40/60%	2.9kg	1000x55x66mm	3.4kg/1085x135x205mm(lpcs/box)
3000/4000K/RGB	42W	AC 220V	18 pcs	32571m	15x30°/15x55°	2.9kg	1000x55x66mm	3.4kg/1085x135x205mm(lpcs/box)

L01F-024

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Welght	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	28W	AC 220V	24 pcs	24081m	7°/25/40/60%	3.0kg	1000x55x66mm	3.5kg/1085x135x205mm(lpcs/box)
3000/4000K/RGB	55W	AC 220V	24 pcs	4343 1m	15x30°/15x55°	3.0kg	1000x55x66mm	3.5kg/1085x135x205mm(lpcs/box)

L01 F-009AP4.0

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Welght	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGBW	30W	AC 220V	9pcs	1713Im	25/40°	2.1kg	500x55x66mm	2.4kg/565x135x175mm(lpcs/box)

L01F-01 8AP4.0

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Welght	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGBW	60W	AC 220V	18 pcs	32281m	25°/40°	3.4kg	1000x55x66mm	3.8kg/1085x135x205mm(lpcs/box)
