L01E wall washer architectural lighting L01E-C mini stick light fixture
  • L01E wall washer architectural lighting L01E-C mini stick light fixture
  • L01E wall washer architectural lighting L01E-C mini stick light fixture
  • L01E wall washer architectural lighting L01E-C mini stick light fixture

L01E wall washer architectural lighting L01E-C mini stick light fixture

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com
Contact Us
PREV：L01E wall washer architectural lighting L01E mini stick light fixture
NEXT：L01F wall washer architectural lighting L01F weil sharp light fixture

L01E wall washer architectural lighting L01E-C mini stick light fixture

The L01E wall washer architectural lighting L01E-C mini stick light fixture is a wall washer LED fixture with a daylight color temperature of 3000K or 4000K. This versatile light can be mounted either horizontally or vertically, and offers eight distinct beam angles to ensure that its light is evenly distributed across a space. The L01E-C has an attractive, modern design and is constructed using durable die-cast aluminum with a scratch-resistant finish.L01E wall washer architectural lighting L01E-C mini stick light fixture is ideal for accent lighting in an area where larger sources of light is not needed. It features AL structure with high CRI more than 80, the laminated glass without uv filter guarantees a long lifespan of up to 30,000 hours, the latest triple-reinforcement process and using high-performance LEDs.

●Reinforced aluminum alloy lamp body, die cast aluminum end cover; smooth surface self-cleaning,beautiful appearance, solid structure;
●Integral heat dissipation structure, the heat can be effectively transferred to the external heat dissipation;
●Plug type waterproof structure, waterproof lasting effective, up to Ip66;
●Isolated wire feeding structure, which can effectively prevent the cable from water vapor;
●The design of power supply and signal protection against surge lightning ESD reverse circuit protection;up to 4KV.

PRODUCT PARAMETER

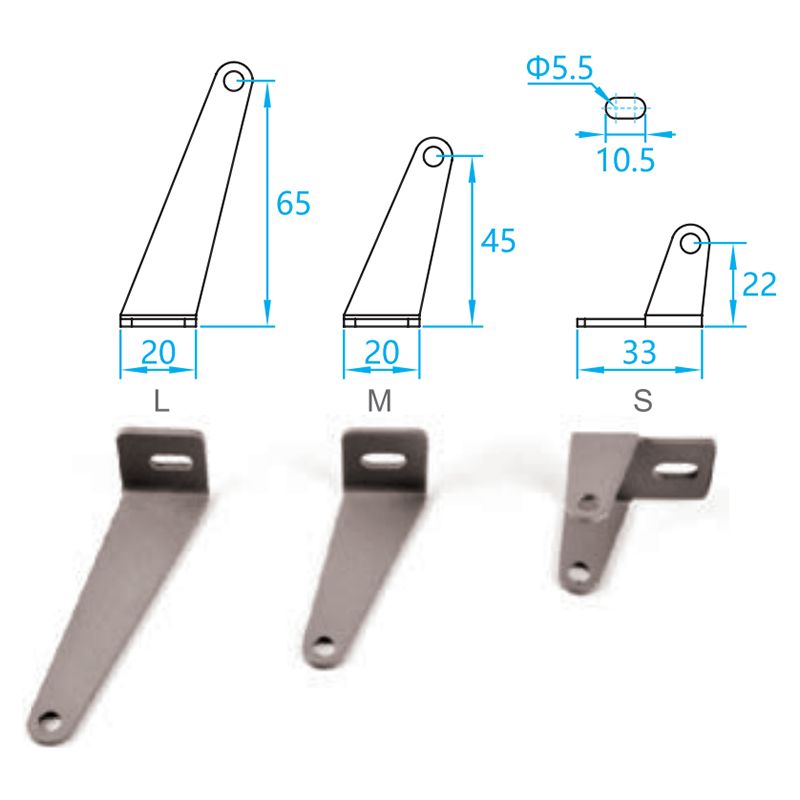

ACCESSORIES

L01E-009CP1.1M



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

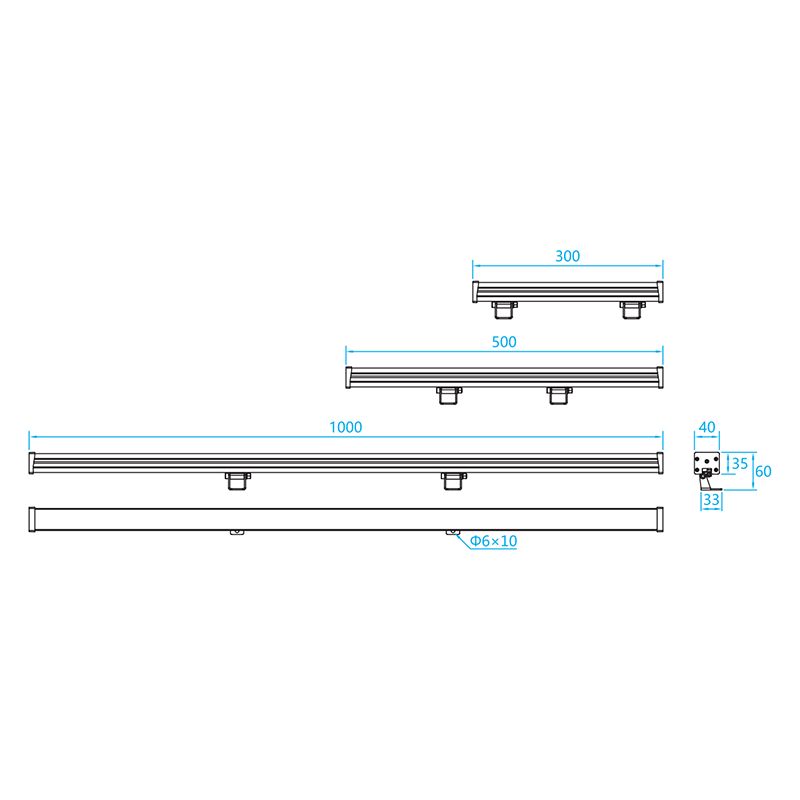

Lamp Size

Gross Weight/Packing Size

DMX512

3000/4000K

9W

DC 24V

0.8kg

9121m

15°/25/40°

9 pcs

500x40x35mm

1.1kg/550x110x130mm(1pc/box)

60/15°x45°

10.7kg/600x460x230mm(12pcs/box)

L01 E-012CP1.1M .



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packing Size

DMX512

3000/4000K

12W

DC 24V

0.8kg

1230lm

15°/25/40°

12 pcs

500x40x35mm

1.1kg/550x110x130mm(1pc/box)

60°/15°x45°

10.7kg/600x460x230mm(12pcs/box)

L01E-01 8CP1.1M



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packing Size

DMX512

3000/4000K

18W

DC 24V

1.45kg

18821m

15°/25/40°

18 pcs

1000x40x35mm

1.7kg/1060x110x130mm(lpc/box)

60°/15°x45°

18.9kg/1130x450x140mm(12pcs/box)

L01E-024CP1.1M



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packlng Slze

DMX512

3000/4000K

24W

DC 24V

1.5kg

2454 1m

15/25/40°

24 pcs

1000x40x35mm

1.8kg/1060x110x130mm(lpc/box)

60°/15°x45°

19.5kg/1130x450x140mm(12pcs/box)

 L01E-012CP4.0M



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packing Size

DMX512

RGBW 4 in1

18/36W

DC 24V

0.8kg

14321m

15/25/40°

12 pcs

500x40x35mm

1.1kg/550x110x130mm(lpc/box)

60°/15°x45°

10.7kg/600x460x230mm(12pcs/box)

L01 E-024CP4.0M .



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Slze

Gross Weight/Packing Size

DMX512

RGBW 4 in 1

24/48W

DC 24V

1.5kg

19181m

15°/25°/40°

24 pcs

1000x40x35mm

1.8kg/1060x110x130mm(lpc/box)

60°/15°x45°

19.5kg/1130x450x140mm(12pcs/box)

L01 E-012CP2.2L



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packing Size

DMX512

3000/4000K

24W

DC 24V

0.8kg

2162 lm

15°/25/40°

12 pcs

500x40x35mm

1.1kg/550x110x130mm(1pc/box)

60°/15°x45°

10.7kg/600x460x230mm(12pcs/box)

L01 E-024CP2.2L



Rated Power

Input Voltage

Net Weight

Luminous Flux

Optical Angle

LED Quantity

Lamp Size

Gross Weight/Packing Size

DMX512

3000/4000K

48W

DC 24V

1.5kg

4328 lm

15/25/40°

24 pcs

1000x40x35mm

1.8kg/1060x110x130mm(1pc/box)

60°/15°x45°

19.5kg/1130x450x140mm(12pcs/box)
