L02C tianxi flood light architectural lighting LO2C-B lighting

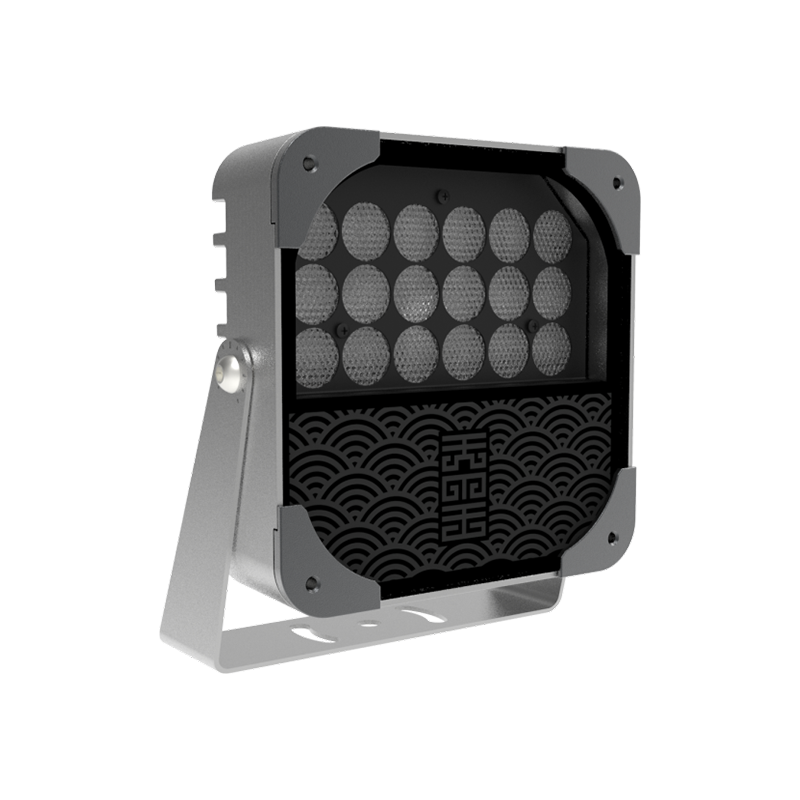

L02C tianxi flood light architectural lighting LO2C-B lighting, with a hard aluminium alloy die-casting body and anodic coating for enhanced corrosion resistance. Industrial grade LED chips ensure high light output and high color rendering index. The premium 20mm square housing and ballast design adequately cools the LED chips. With its highest lumen density, the new product produces more light output with lower power consumption than traditional floodlights. The die-cast aluminum housing and efficient heat sink allow even more efficient heat dissipation and long life span regardless of the weather conditions or environment conditions.

PRODUCT PARAMETER

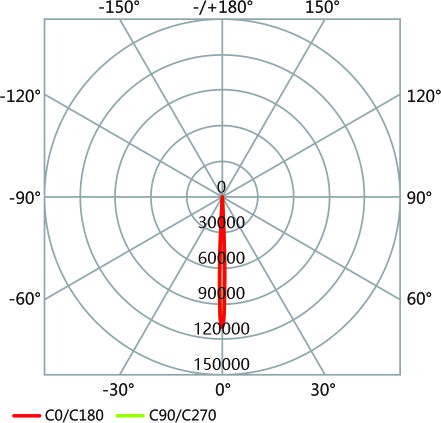

L02C-008B 25W 3°



(h)y

Eavg(lx)

Emax[lx]

D[m]

2

17723

27415

0.11

4

4431

6854

0.22

6

1969

 3046 0.33

8

1108

 1713 0.44

10

708

 1097 0.55

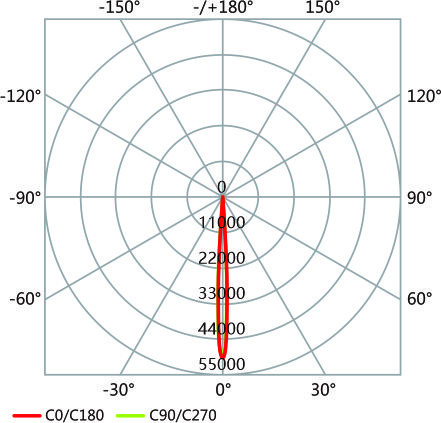

L02C-008B 25W 5°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 8516 12684 0.18
4 2129 3171 0.36
6 946 1409 0.54
8 532 792 0.73
10 340 507 0.89

L02C-01 8B 40W 10°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 11768 18210 0.35
4 2942 4552 0.71
6 1308 2023 1.07
8 735 2023 1.43
10 470 1138 1.79

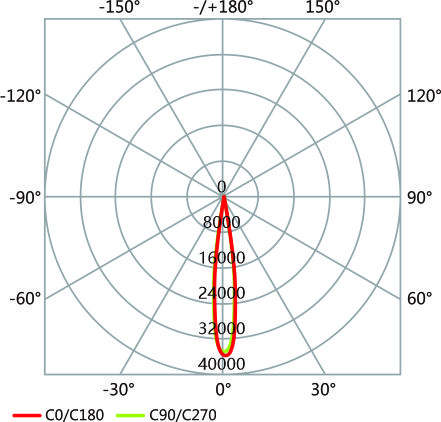

L02C-018B 40W 15°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 6296 9385 0.48
4 1574 2346 0.96
6 699 1043 1.45
8 393 586 1.93
10 251 375 2.42

L02C-018B 40W 25°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 2356 3499 0.95
4 589 874 1.9
6 261 388 2.85
8 147 218 3.8
10 94 140 4.75

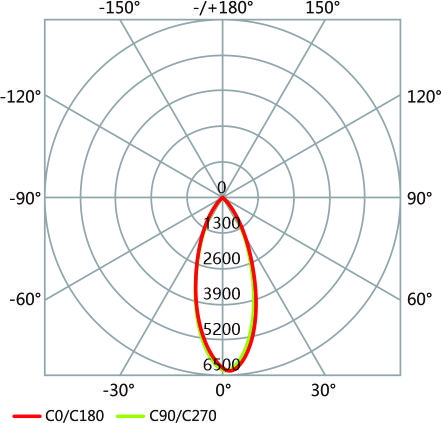

L02C-01 8B 40W 40°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 1046 1604 1.37
4 261 401 2.74
6 116 178 4.11
8 65 100 5.48
10 41 64 6.85

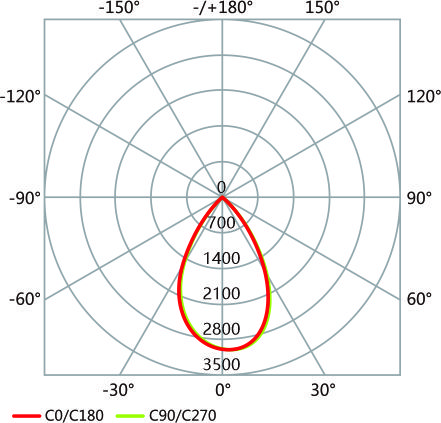

L02C-018B 40W 60°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 454 763 2.37
4 113 188 4.74
6 50 83 7.11
8 28 47 9.48
10 18 30 11.86

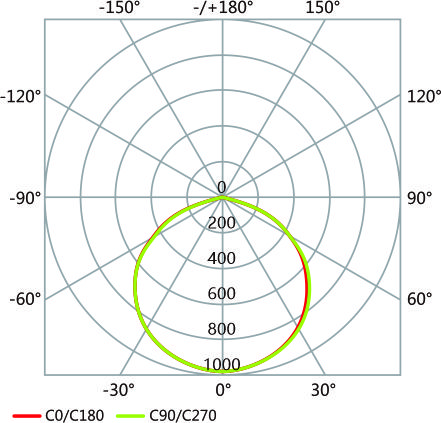

L02C-01 8B 40W 90°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

 287 980

3.07

2

 71 980

6.14

3

 31 109

9.21

4

 17 61

12.29

5

 11 39

15.36

ACCESSORIES

L02C-004B



Rated Power

InputVoltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

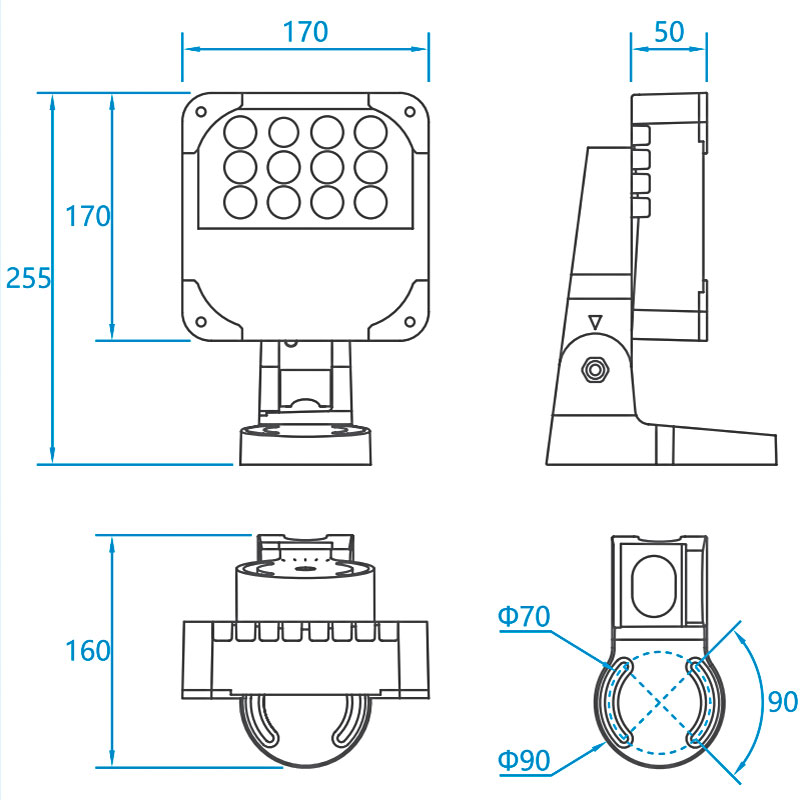

Lamp Size

Gross Weight/Packing Size



40W

AC 220V

4pcs/RGBW

1424lm

15°/25°/40°/60°

2.4kg

255x170x160mm

2.6kg/320x270x190(1pcs/box)

9.9kg/540x370x320(4pcs/box)

L02C-008B



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

25W

AC 220V

8 pcs

1625lm

3°/5°

2.4kg

255x170x160mm

2.6kg/320x270x190(1pcs/box)

9.9kg/540x370x320(4pcs/box)

L02C-018B



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

40W

AC 220V

18 pcs

3817lm

7°/10°/15°/25°/40/6090°

15x55°/15x30°/15x45°

4x50°/1 3x40°/30x60°

2.5kg

255x170x160mm

2.7kg/320x270x190(1pcs/box)

10.3kg/540x370x320(4pcs/box)
