Custom LED Wall Washer Light Manufacturers, Suppliers

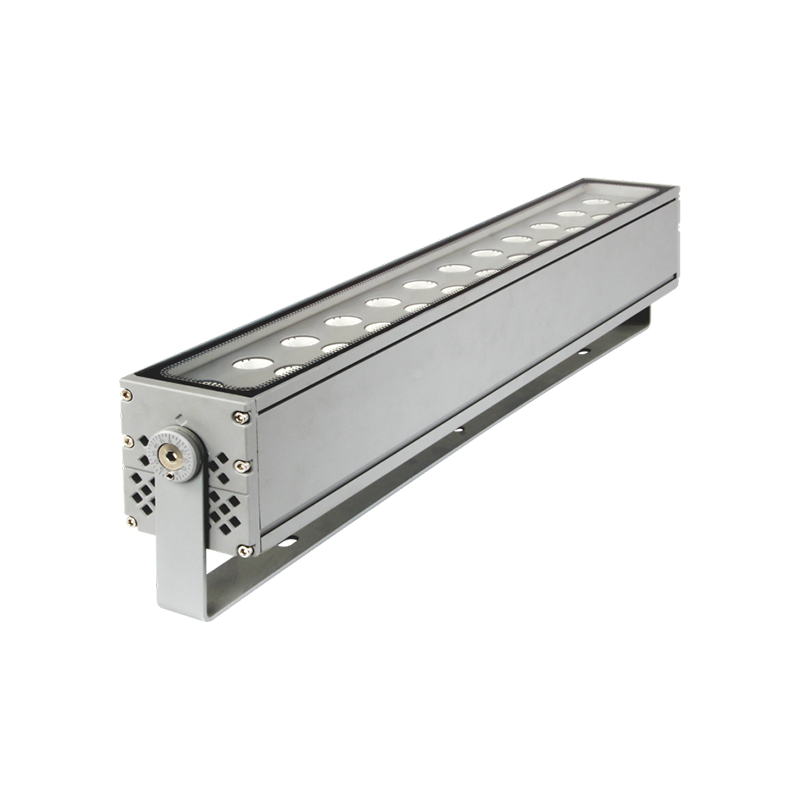

L01C wall washer architectural lighting L06B-P01A/C Shaping lamps

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com

L01C wall washer architectural lighting L06B-P01A/C Shaping lamps

●Both the light and the advantages of the wall lamp, is a high-level lighting weapon; is an alternative to large power projection lamp illumination facade effective products;

●The mesh ventilation structure can effectively heat lamps, the maximum power of up to 100W;

●Integral support, firm structure and strong integrity;

●Reinforced aluminum alloy lamp body, die cast aluminum end cover; smooth surface, with self-cleaning function; beautiful appearance, solid structure;lsolated wire feeding structure, which can effectively prevent the cable from water vapor;

Piston type waterproof structure, waterproof up to Ip66;

The design of power supply and signal protection against surge lightning ESD reverse circuit protection; up to 4KV.

PRODUCT PARAMETER

ACCESSORIES

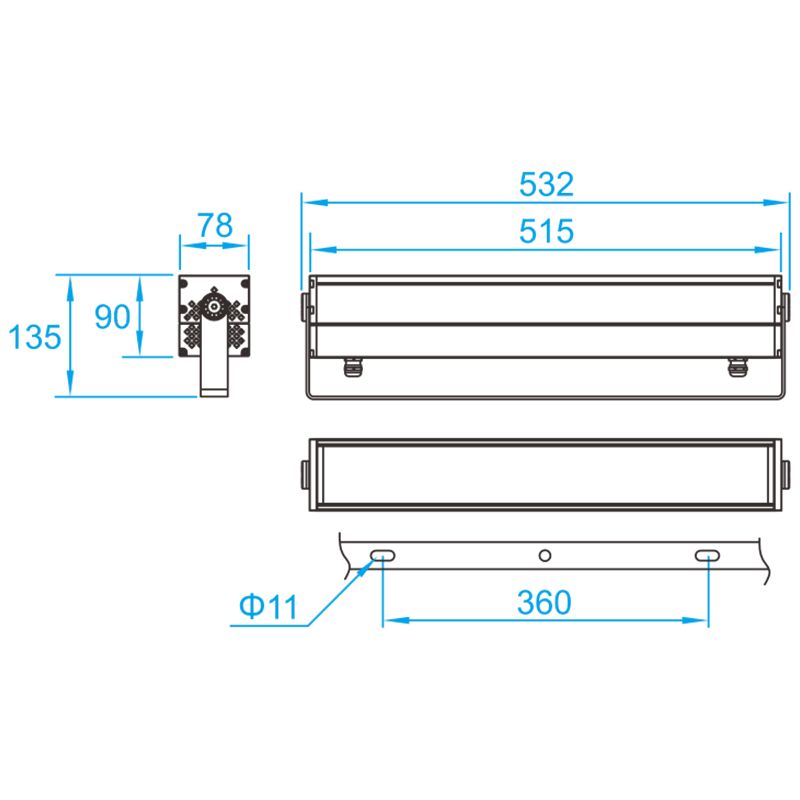

L01C-018

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	21W	AC 220V	18 pcs	1809lm	7°/15°/25°/40°/60°	3.4 kg	530x 80x90mm	3.7kg/575x 135x205mm(1 pcs/box)
3000/4000K/RGB	42W	AC 220V	18 pcs	3570lm	60°/15x30°/15x55°	3.4 kg	530x 80x90mm	3.7kg/575x 135x205mm(1 pcs/box)

L01C-024

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	28W	AC 220V	24 pcs	2828lm	7°/15°/25°/40°/60°	3.5kg	530x80x90mm	3.8kg/575x135x205mm(1pcs/box)
3000/4000K/RGB	55W	AC 220V	24 pcs	4995lm	60°/15x30°/15x55°	3.5kg	530x80x90mm	3.8kg/575x135x205mm(1pcs/box)

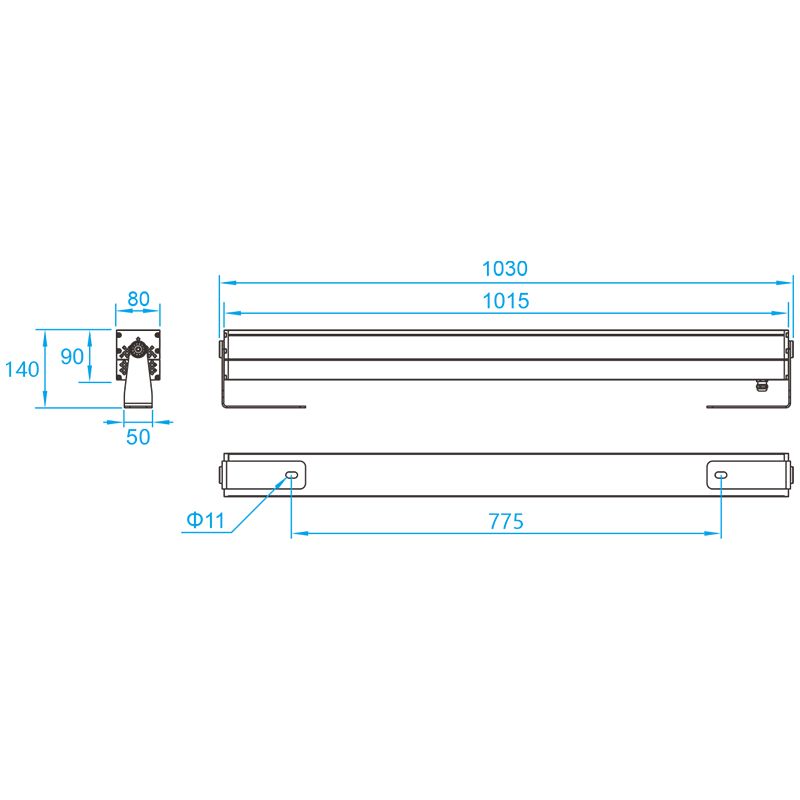

L01C-036

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
30004000K/RGB	42W	AC 220V	36 pes	4243lm	3°/7°/25°/40°	5.7kg	1030x80x90mm	6.3kg/1085x135x205mm(lpcs/box)
30004000K/RGB	83W	AC 220V	36 pes	70551m	60°/15x30°/15x55°	5.7kg	1030x80x90mm	6.3kg/1085x135x205mm(lpcs/box)

L01C-048

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	55W	AC 220V	48 pes	56101m	7°/25°/40°/60°	5.8kg	1030x80x90mm	6.4kg/1085x135x205mm(1pcs/box)
3000/4000K/RGB	110W	AC 220V	48 pes	9155lm	15x30°/15x55°	5.8kg	1030x80x90mm	6.4kg/1085x135x205mm(1pcs/box)

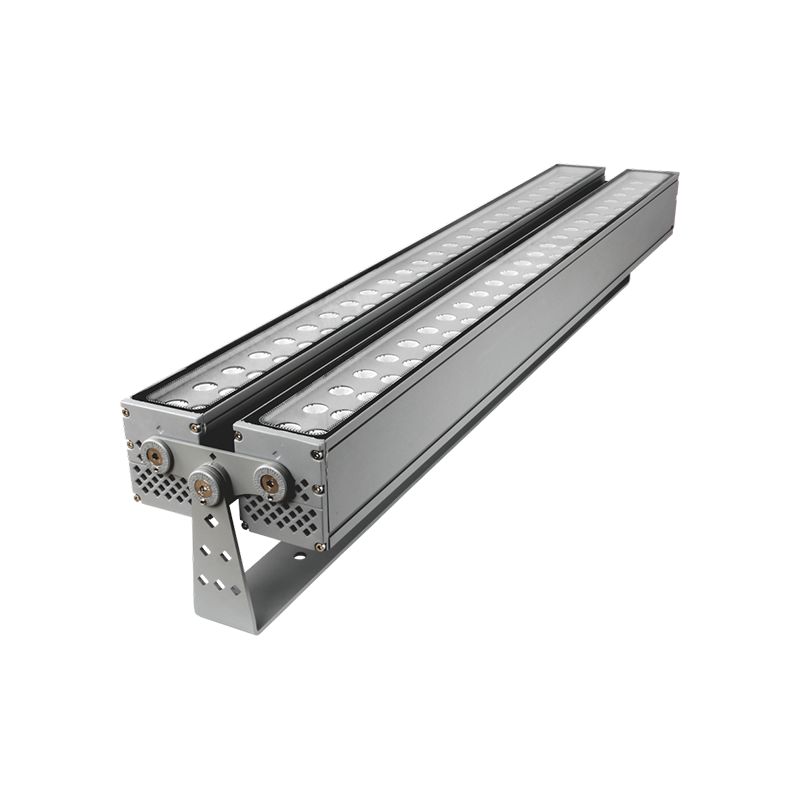

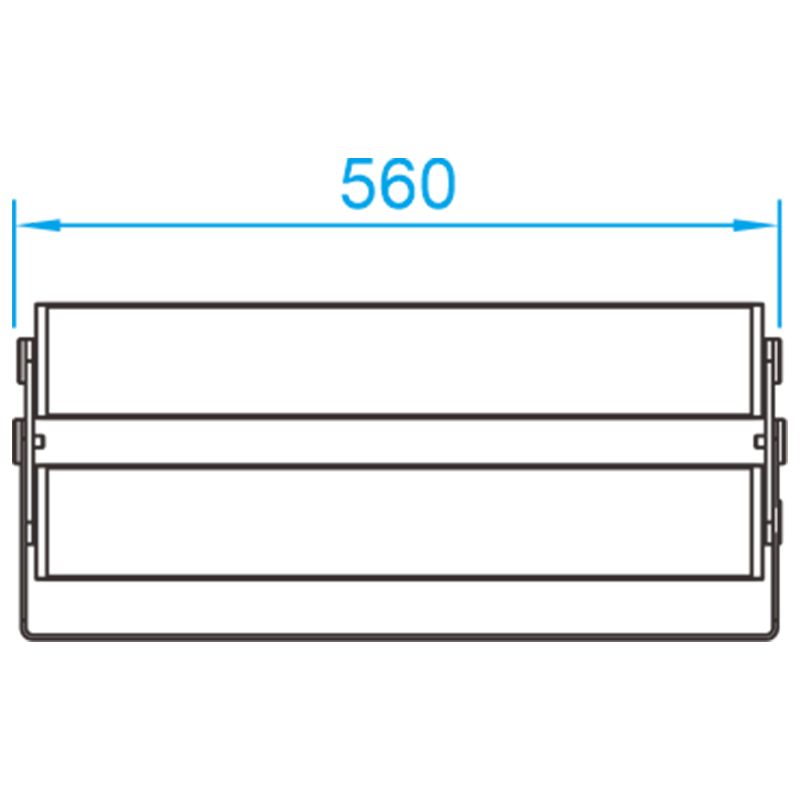

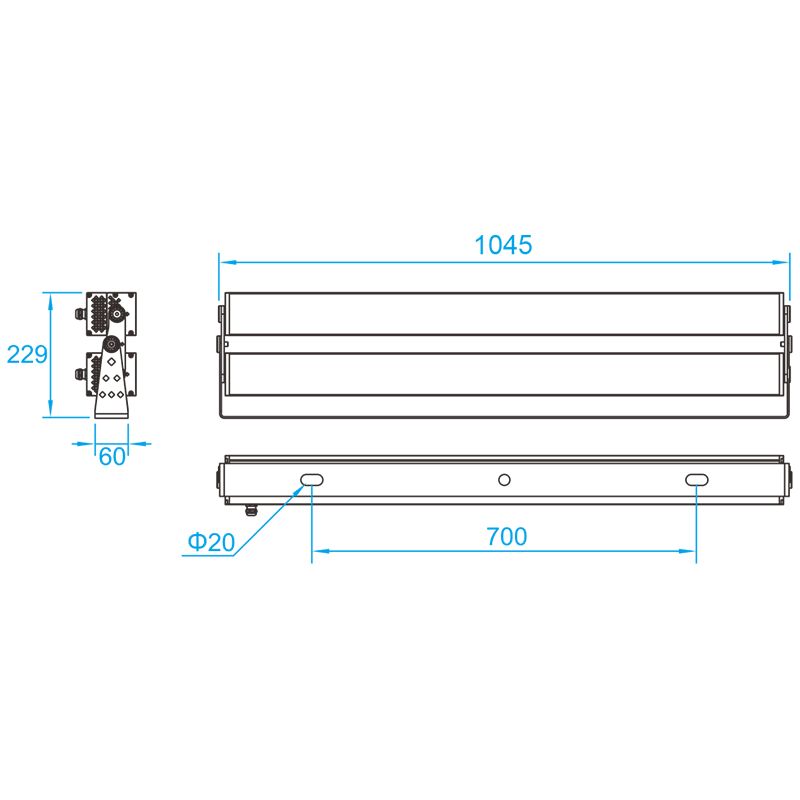

L01C-096（Double）

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Gross Weight/Packing Size
3000/4000K/RGB	220W	AC 220V	96 pcs	183101m	7°/25°/40°/60°	13.3kg	1050x230x90mm	14.1kg/1095x300x145mm(1pcs/box)
					15x30°/15x55°
